冷凍首頁Freezing > 冷氣冷凍專用銅接頭
Copper Joint Exclusively Used for Air-conditioning and FreezingExample of Weldin

顯示第 3-1頁,共 3 頁 | NEXT


銅接頭

Example of Welding

E020 E019
E021 JS-682-04

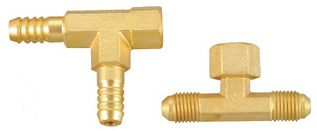

三通瓦斯接頭 三通內外牙接頭
Tee Gas Joint Tee Joint with Inner
and Outer Teeth
焊接頭1/4PT有內牙Welding Joints 1/4PT
with Inner Teeth

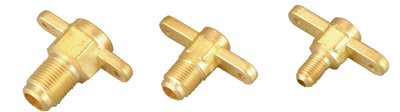

排氣閥頭組Exhaust Gas Valve
Head Set

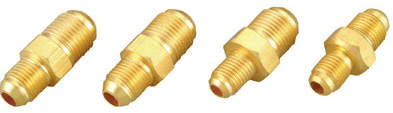

大小接頭

Big and Small Joints

RU-10×08 RU-08×06
5/8"×1/2" 3/8"×3/8"
RU-06×06 RU-06×05 RU-06×04 RU-05×04
3/8"×3/8" 3/8"×5/16" 3/8"×1/4" 5/16"×1/4"

固定式鍛造接頭

Fixed Style Forging Joints

B-12 B-10 B-10×08
6分 6mm
5分 5mm
5分牙4分孔
5mm teeth and 4mm hole
B-08 B-06 B-04
4分 4mm 3分 3mm 2分 2mm

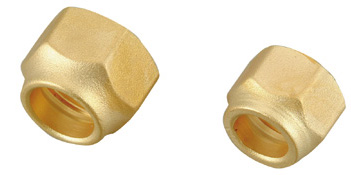

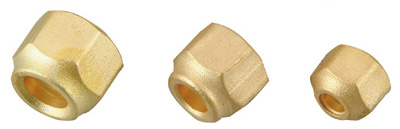

鍛造喇叭頭

Forging Horn Joints

N-12  3/4"

N-10  5/8"

N-08  1/2" N-06  3/8" N-04  1/4"

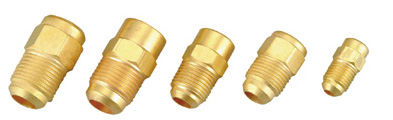

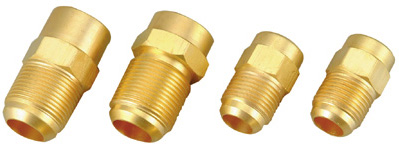

焊接頭

Welding Joints

FSU-12×12 FSU-12×12 FSU-10×08 FSU-10×10
(加長) (短) 5分牙4分孔
5mm teeth and 4mm hole
(Lengthening) (Short)
FSU-08×08 FSU-08×06 FSU-06×06 FSU-06×06 FSU-04×04
4分牙3分孔
4mm teeth and 3mm hole
(加長) (短)
(Lengthening) (Short)

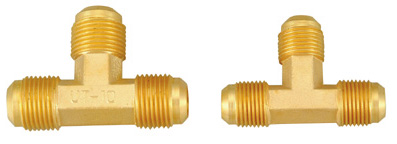

三通外牙接頭

Tee Joint with Outer Teeth

UT-10  5/8" UT-08  1/2"
UT-06  3/8" UT-04  1/4"
